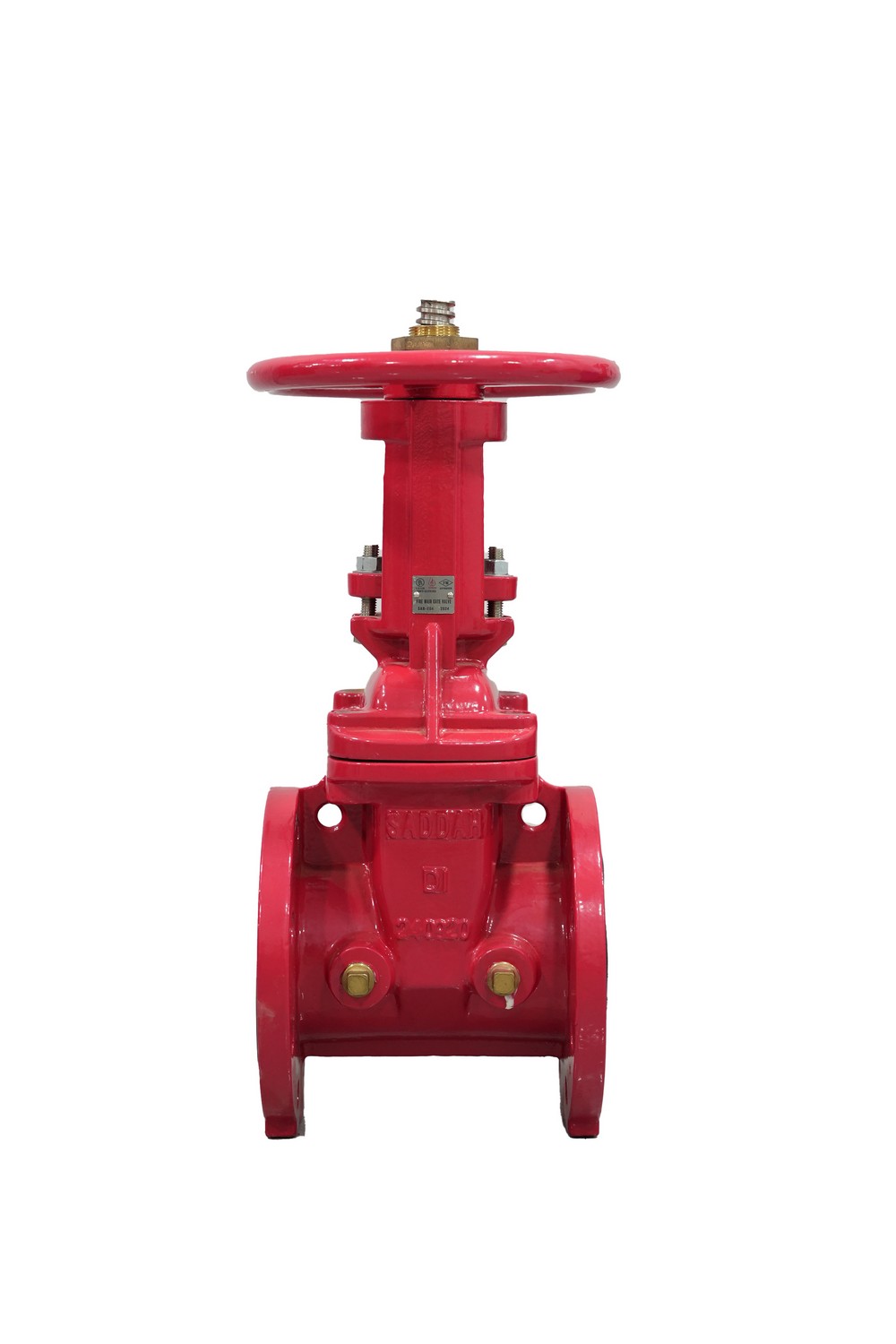

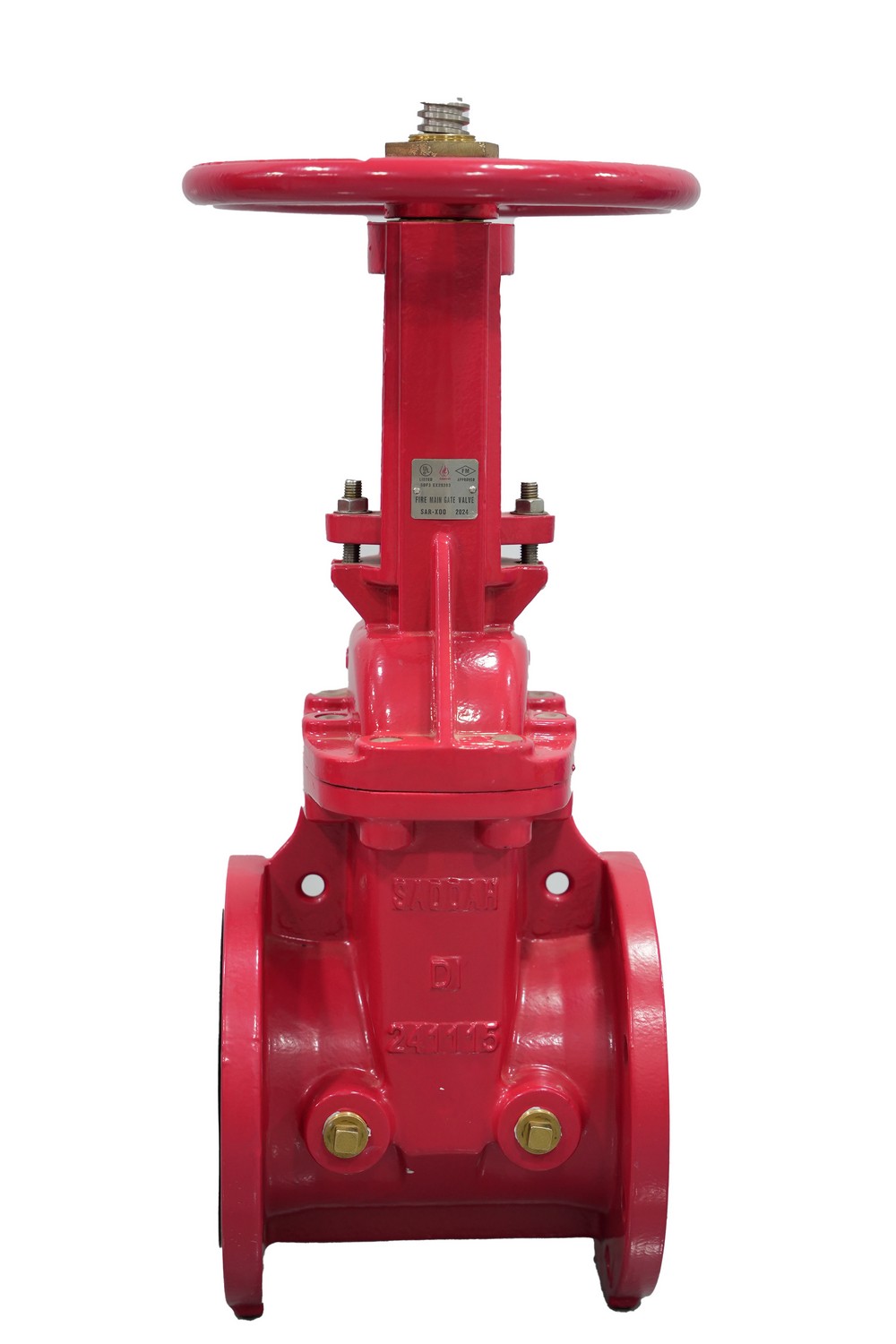

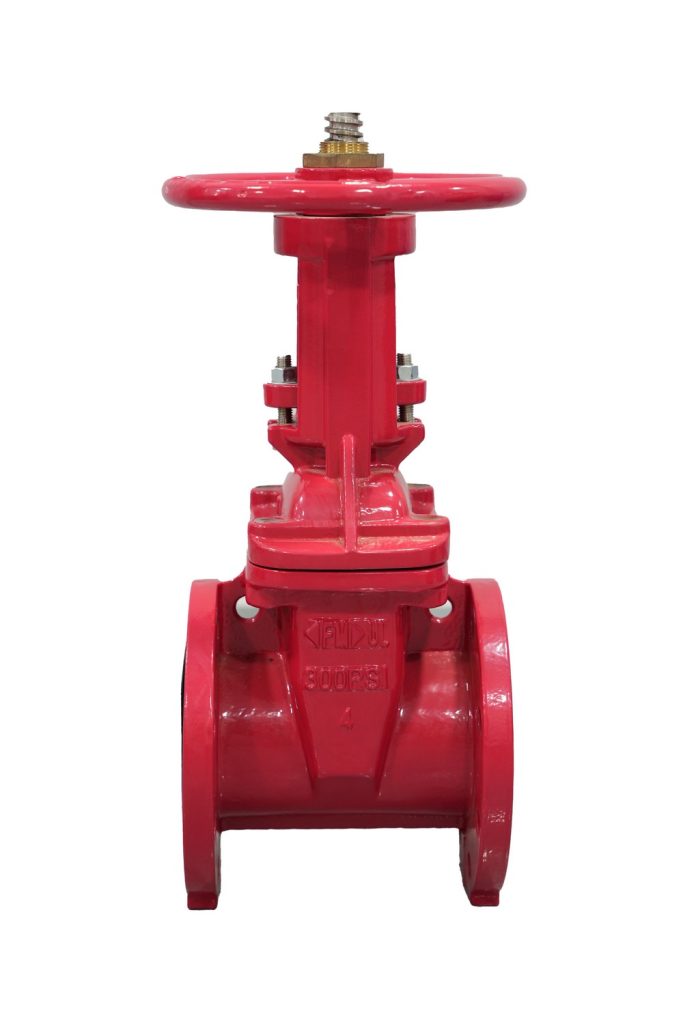

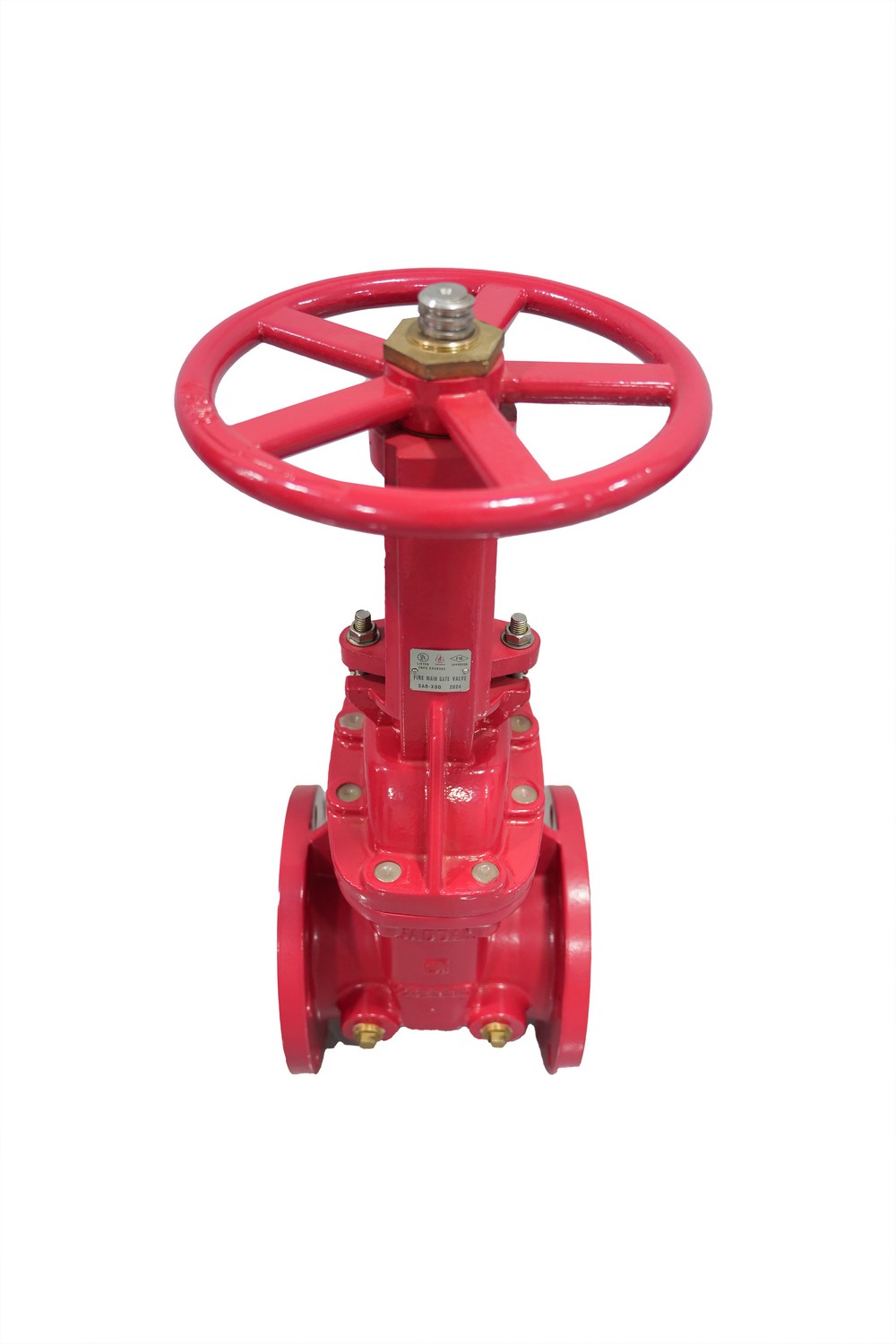

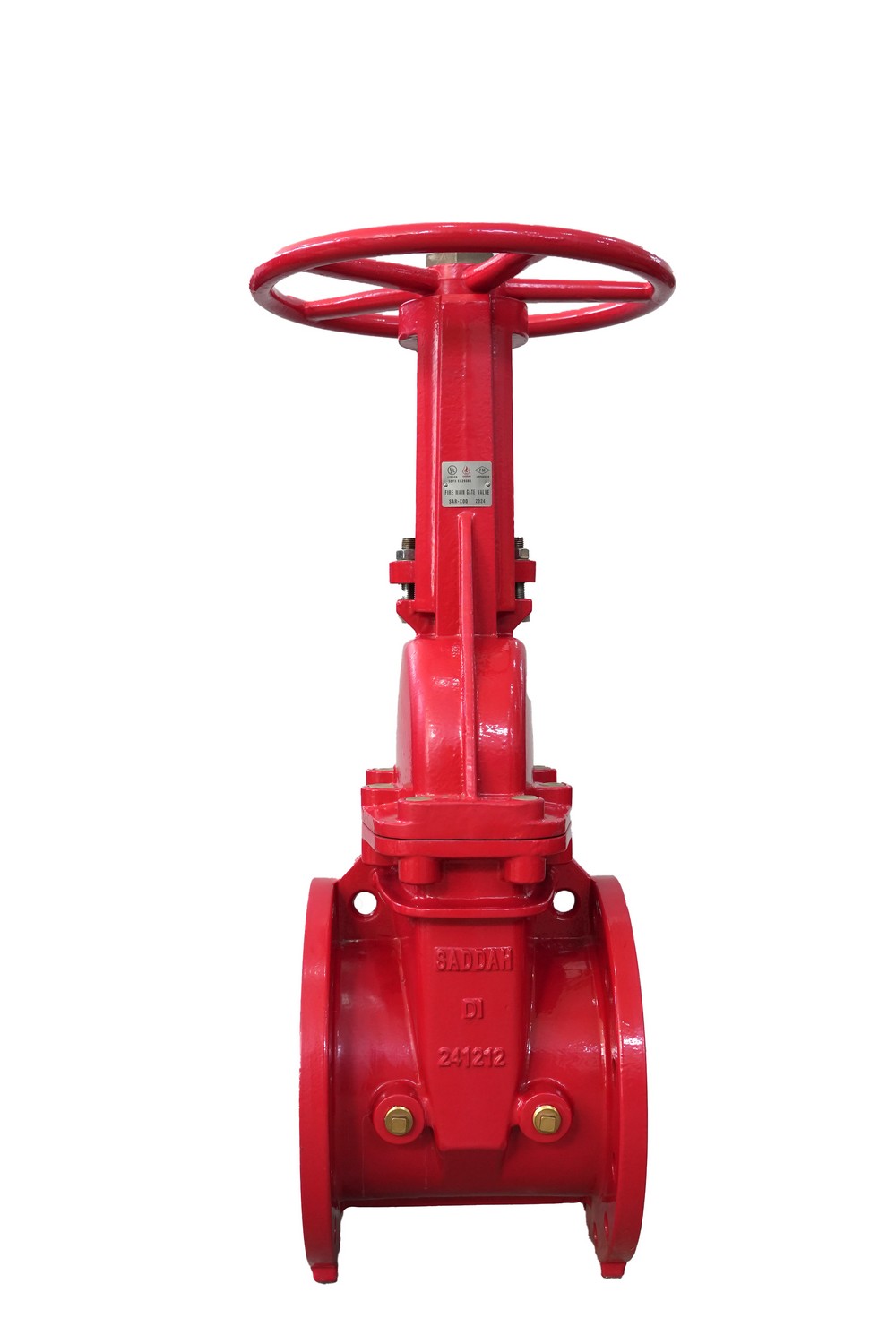

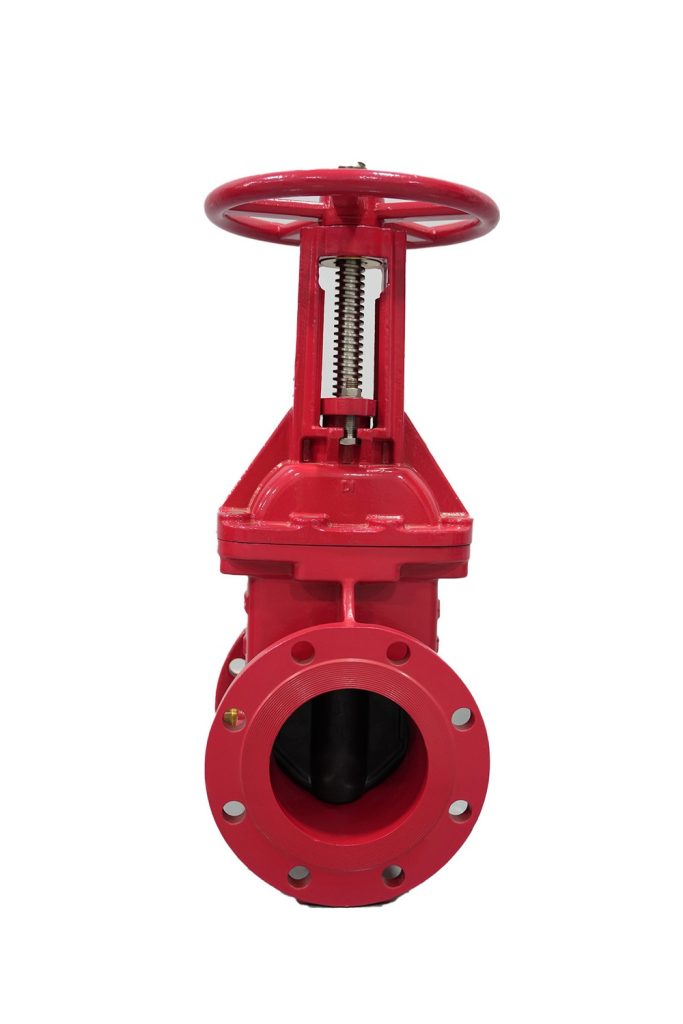

“The SADDAH Model SAR-X00 OS&Y gate valve is built for reliable service in demanding environments, ensuring precise flow control and visible valve status. This model is designed for resilience and adaptability, meeting rigorous standards to deliver performance and durability.
APPLICATIONS
The SADDAH SAR-X00 OS&Y Gate Valve is designed for fire protection systems, industrial applications, and water distribution where high visibility and reliable shutoff are critical
TECHNICAL FEATURES
Pressure Ratings:
• Nominal Pressure: 300 PSI for stable operation under high-pressure conditions.
• Operates efficiently with a standard working temperature cap at 80°C.
Connection Standards:
• Flange Options: ASME/ANSI B16.1 Class 125, ASME/ANSI B16.42 Class 150, BS EN 1092-2 PN16, or GB/T9113.1 for broad compatibility.
• Face-to-Face Standard: ASME B16.10 to align with industry-standard configurations
• Connection Ends: ANSI B16.42 Class 150
Valve Sizes:
• Available in a range from 2.5” , 3”, 4”, 5”, 6”, 8”, 10”, 12” (DN65 to DN300) to suit various system requirements
Coating:
• Fusion-bonded epoxy coating on both interior and exterior surfaces per AWWA C550 standards, providing corrosion resistance.”
