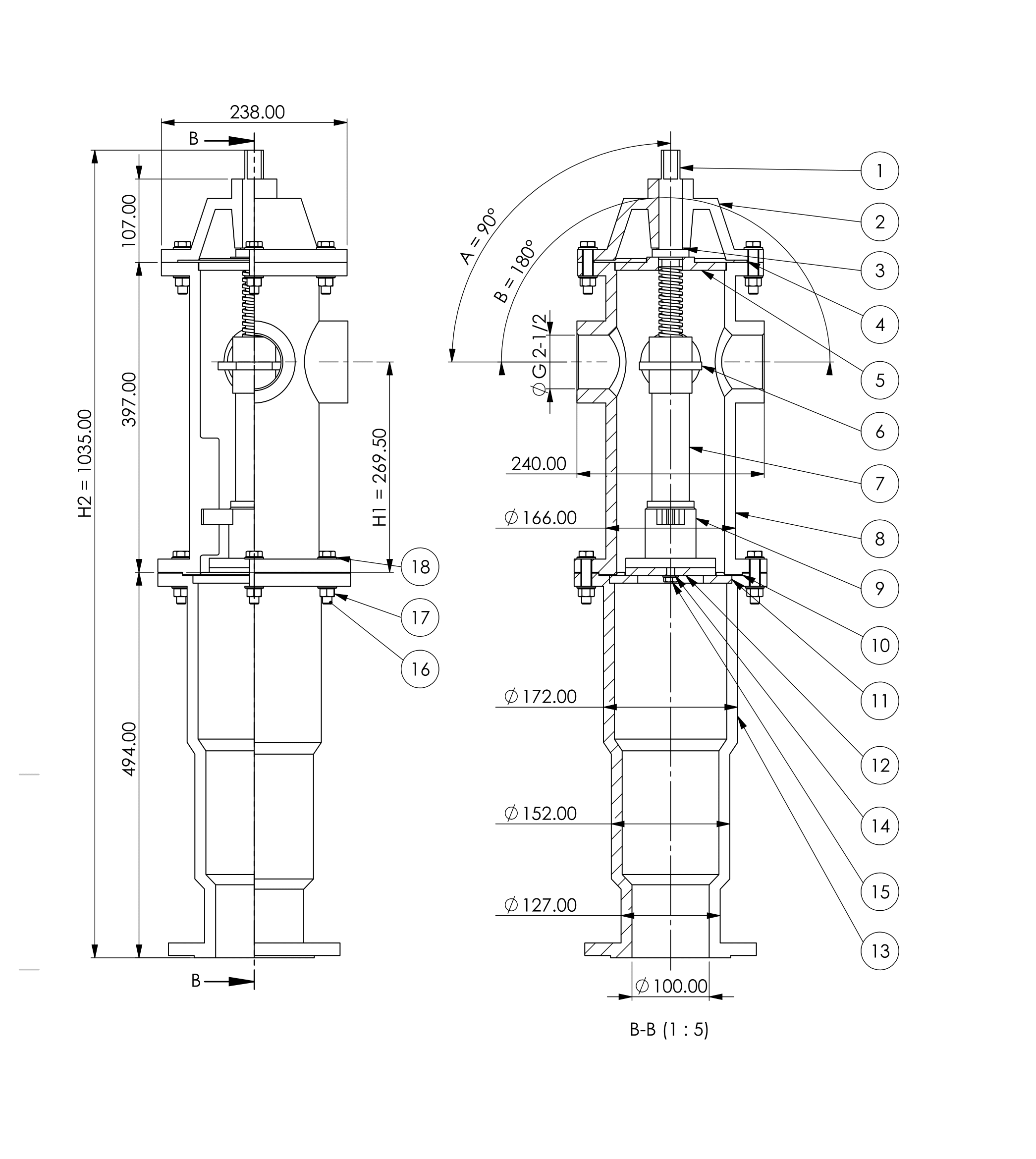

| ITEM NO. | PART NUMBER | QTY. | DESC. | Material |
|---|---|---|---|---|
| 1 | SFH15-P12 | 1 | Power Screw | Brass |
| 2 | SFH15-P11 | 1 | Cap | Gray/Ductile Cast Iron |
| 3 | SFH15-P15 | 1 | O-Ring | EPDM/NBR |
| 4 | SFH15-P14 | 1 | Cap Seal | EPDM/NBR |
| 5 | SFH15-P08 | 1 | Cap Seal | Gray/Ductile Cast Iron |
| 6 | SFH15-P05 | 1 | Power Screw Nut | Gray/Ductile Cast Iron |
| 7 | SFH15-P06 | 1 | Pillar | AISI 304 |
| 8 | SFH15-P01 | 1 | Upper Body | Gray/Ductile Cast Iron |
| 9 | SFH15-P10 | 1 | Gate Body | Gray/Ductile Cast Iron |
| 10 | SFH15-P13 | 1 | Middle Flanges Seal | EPDM/NBR |
| 11 | SFH15-P03 | 1 | Gate Disc | Brass |
| 12 | SFH15-P09 | 1 | Gate Seal | EPDM/NBR |
| 13 | SFH15-P02 | 1 | Lower Body | Gray/Ductile Cast Iron |
| 14 | Washer DIN 125-B 10.5 | 1 | Plain Washer 10.5 | Galvanized Steel |
| 15 | DIN EN 24017-M10 x 25-N | 1 | Hex Bolt M10x25 | Galvanized Steel |
| 16 | DIN 913-M6 x 6-C | 1 | Hex Bolt M6x6 | Galvanized Steel |
| 17 | DIN EN 24014-M12 x 60 x 30-N | 12 | Hex Bolt M12x60 | Galvanized Steel |
| 18 | Washer DIN 125-B 13 | 24 | PlainWasher 13 | Galvanized Steel |
| 19 | Hexagon Nut ISO 4032-M12-W-N | 12 | Hex Nut M12 | Galvanized Steel |
