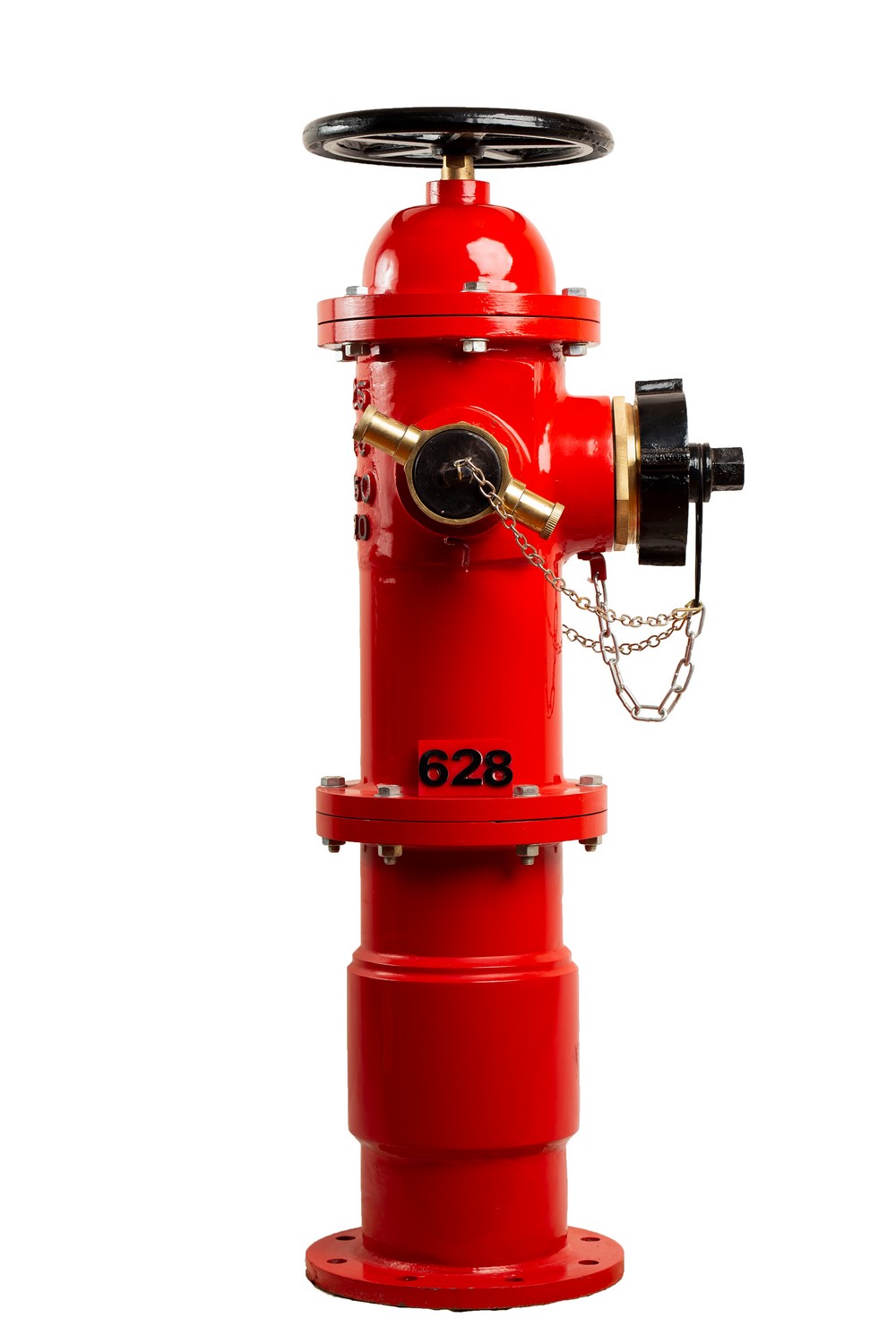

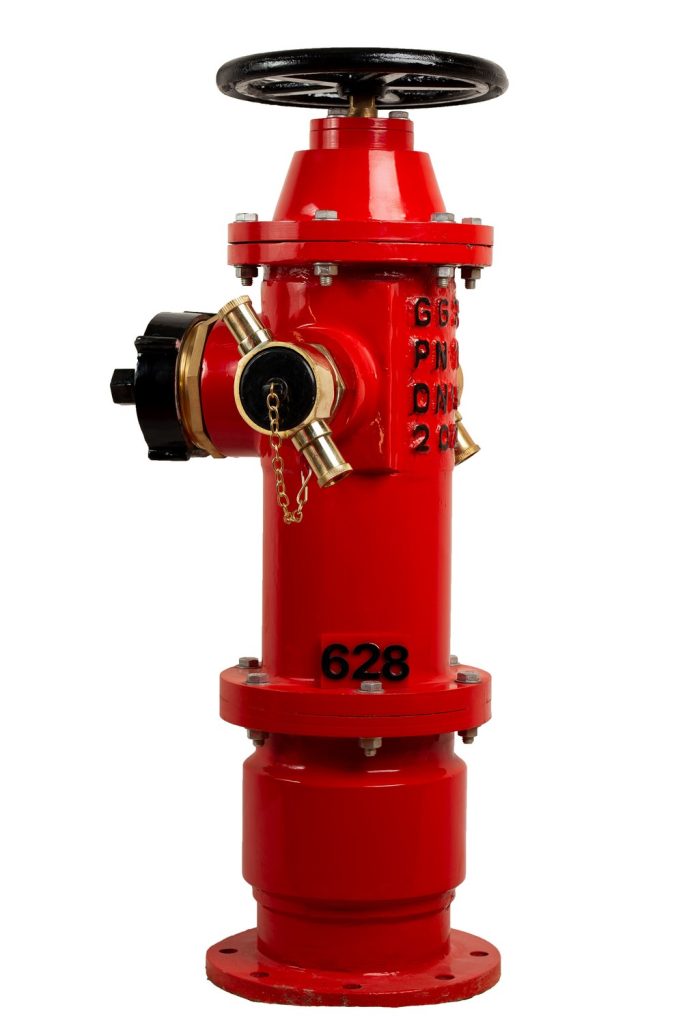

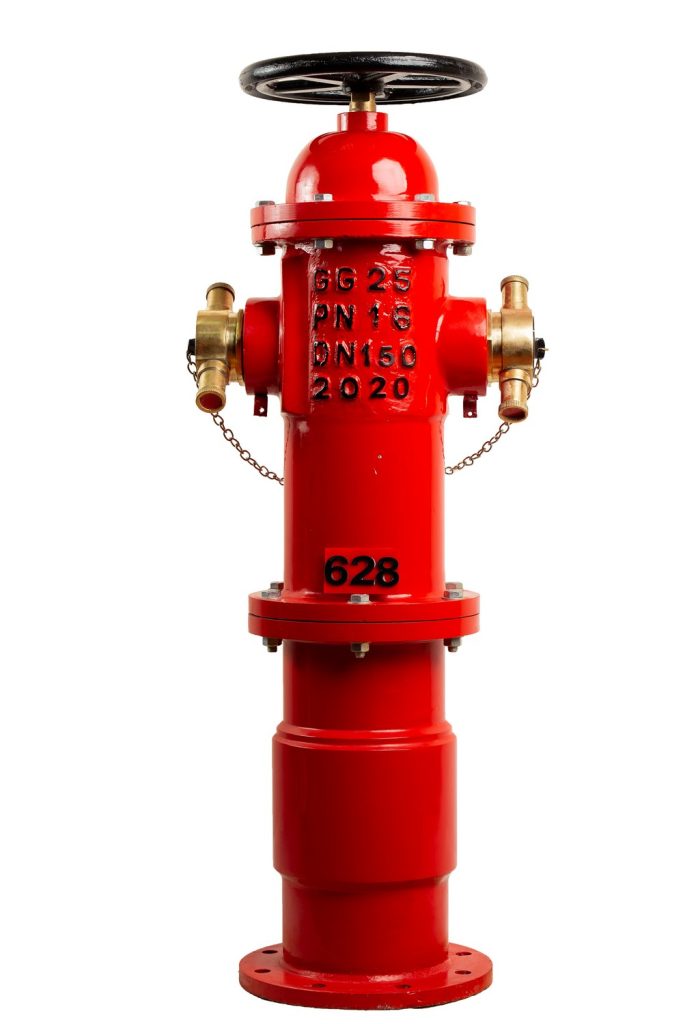

•Number of Outlets: 2 outlets on 180° with brass fire hose adapter and 1 pumper outlet.
•Inlet Size: 150 mm (6 Inches).
•Working pressure: 16 Bar
•Test Pressure: 24 Bar.
•KV For DN 2×65: < 140.
•KV For DN 1×100: <160.
• Minimum Operating Torque: <= 80 N.m.
•Minimum Strength Torque: >= 250N.m.
•Full Opening: 7 Turns
| ITEM NO. | PART NUMBER | QTY. | DESC. | Material |
|---|---|---|---|---|
| 1 | SFH28-P06 | 1 | Power Screw | Brass |
| 2 | SFH28-P01 | 1 | Cap | Gray/Ductile Cast Iron |
| 3 | SFH28-P12 | 1 | O-Ring | EPDM/NBR |
| 4 | SFH28-P15 | 1 | Cap Seal | EPDM/NBR |
| 5 | SFH28-P05 | 1 | Head Flange | Gray/Ductile Cast Iron |
| 6 | SFH28-P18 | 1 | Large Cap | Gray/Ductile Cast Iron |
| 7 | SFH28-P17 | 1 | 4″ Threaded Joint | Brass |
| 8 | DIN EN 24017-M12 x 60-N | 8 | Hex Bolt M12x60 | Galvanized Steel |
| 9 | Washer DIN 125-B 13 | 32 | Plain Washer 13 | Galvanized Steel |
| 10 | Hexagon Nut ISO 4034-M12-N | 16 | Hex Nut M12 | Galvanized Steel |
| 11 | SFH28-P07 | 1 | Power Screw Nut | Gray/Ductile Cast Iron |
| 12 | SFH28-P08 | 1 | Pillar | AISI 304 |
