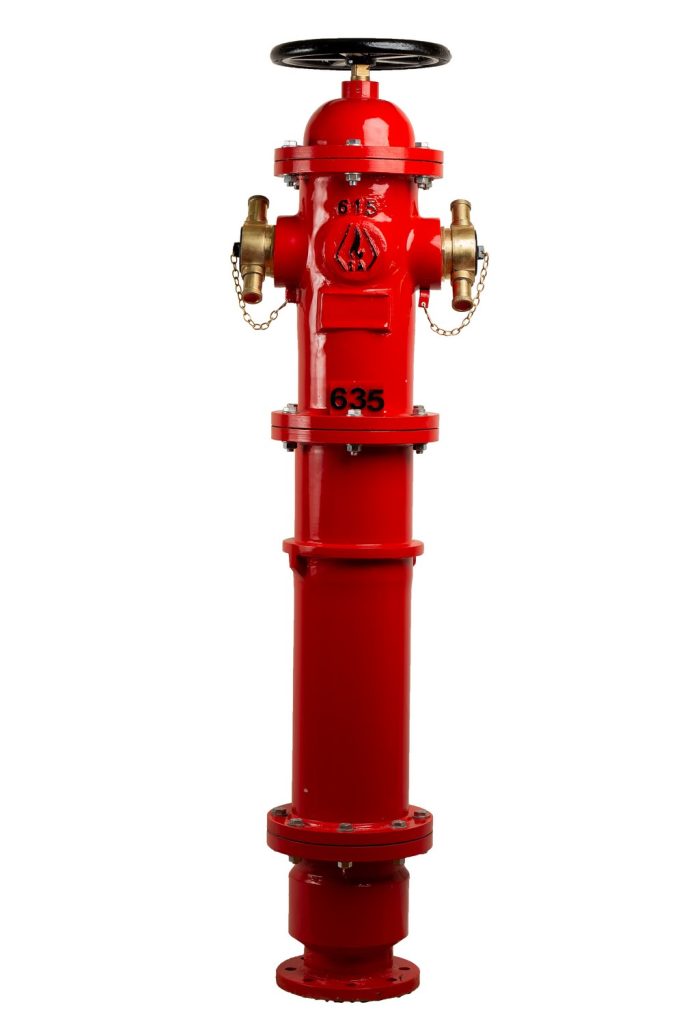

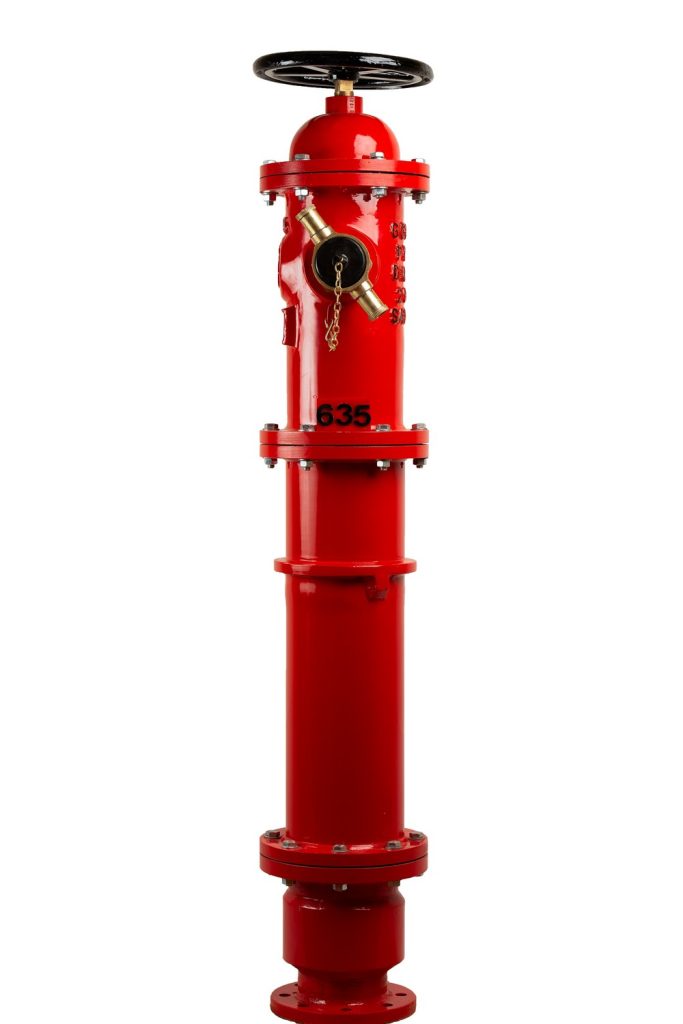

•Number of Outlets: 2 outlets on 180° with brass fire hose adapter
•Inlet Size: 100 mm (4 Inches).
•Working pressure: 16 Bar
•Test Pressure: 24 Bar.
•KV: < 140.
• Minimum Operating Torque: <= 80 N.m.
•Minimum Strength Torque: >= 250N.m.
•Full Opening: 7 Turns
| ITEM NO. | PART NUMBER | QTY. | DESC. | Material |
|---|---|---|---|---|
| 1 | SFH35-P12 | 1 | Power Screw | Brass |
| 2 | SFH35-P11-02 | 1 | Cap | Gray/Ductile Cast Iron |
| 3 | SFH35-P15 | 1 | O-Ring | EPDM/NBR |
| 4 | SFH35-P14 | 1 | Cap Seal | EPDM/NBR |
| 5 | SFH35-P08 | 1 | Head Flange | Gray/Ductile Cast Iron |
| 6 | SFH35-P05 | 1 | Gate Body | Gray/Ductile Cast Iron |
| 7 | SFH35-P01 | 1 | Upper Body | Gray/Ductile Cast Iron |
| 8 | SFH35-P13 | 1 | Middle Flanges Seal | EPDM/NBR |
| 9 | SFH35-P02 | 1 | Lower Body | Gray/Ductile Cast Iron |
| 10 | SFH35-P06 | 1 | Pillar | AISI 304 |
| 11 | SFH35-P10 | 1 | Gate Disc | Gray/Ductile Cast Iron |
| 12 | SFH35-P09 | 1 | Gate Seal | EPDM/NBR |
| 13 | DIN EN 24017-M12 x 60-N | 12 | Hex Bolt M12x60 | Galvanized Steel |
| 14 | Washer DIN 125-B 13 | 24 | Plain Washer 13 | Galvanized Steel |
| 15 | Hexagon Nut ISO 4032-M12-W-N | 12 | Hex Nut M12 | Galvanized Steel |
| 16 | SFH35-P07 | 1 | Power Screw Nut | Gray/Ductile Cast Iron |
