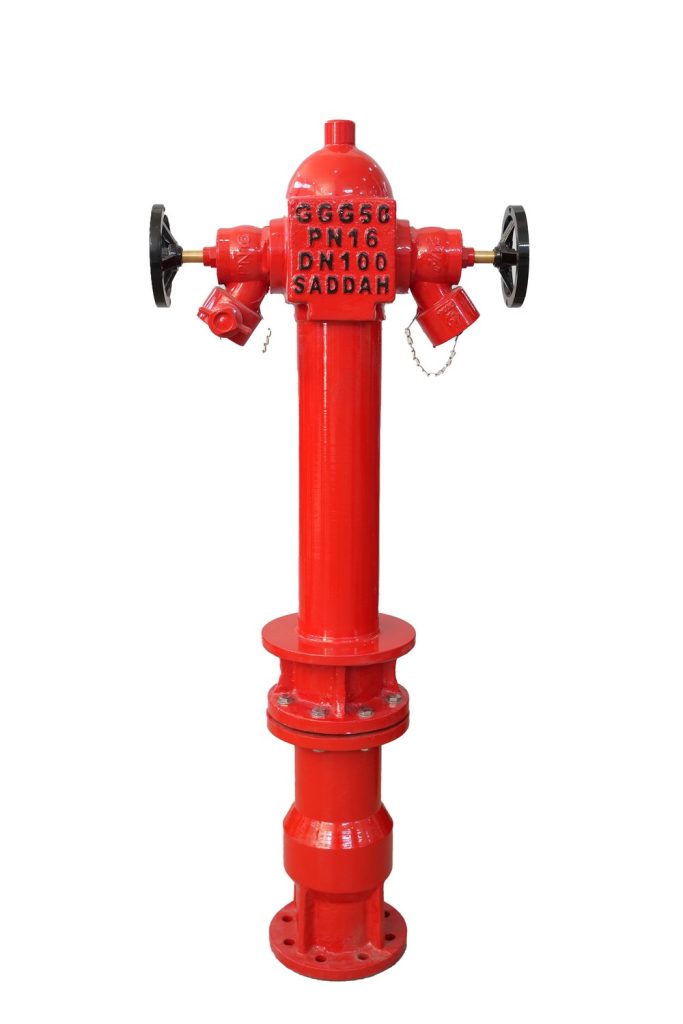

•Number of Outlets: 2 outlets on 180°
•Inlet Size: 150 mm (6 Inches).
•Working pressure: 16 Bar
•Test Pressure: 24 Bar.
•KV: < 140.
•Number of Outlets: 2 outlets on 180°
•Inlet Size: 150 mm (6 Inches).
•Working pressure: 16 Bar
•Test Pressure: 24 Bar.
•KV: < 140.
| ITEM NO. | PART NUMBER | QTY. | DESC. | Material |
|---|---|---|---|---|
| 1 | SFH20-P01 | 1 | Hydrant Body | Gray/Ductile Cast Iron |
| 2 | LND_P01 | 2 | Land Valve Body | Brass |
| 3 | LND_P05 | 2 | Gate Disc | EPDM/NBR |
| 4 | Hexagon Nut ISO 4034-M8 – N | 2 | Hex Nut M8 | Galvanized Steel |
| 5 | LND_P04 | 2 | Land Valve Stem | Brass |
| 6 | LND_P06 | 2 | Handle Wheel | Aluminum |
| 7 | LND P02 | 2 | Land Valve Head Flange | Brass |
| 8 | LND_P03 | 2 | Hose Lock | Brass |
| 9 | Washer DIN 125-A 8.4 | 2 | Plain Washer 8.4 mm | Galvanized Steel |
| 10 | SFH20-P02 | 1 | Hydrant Joint | Gray/Ductile Cast Iron |
| 11 | B18.2.3.2M Formed hex screw, M16 x 2.0 x 70–38WN | 4 | Hex Bolt M16x70 | Galvanized Steel |
| 12 | B18.22M-Plain washer, 16 | 8 | Plain washer, 16 mm | Galvanized Steel |
| 13 | B18.2.3.7M Hexagon Nuts, M16 x 2.0- 18WN | 4 | Hex Nut M16 | Galvanized Steel |
