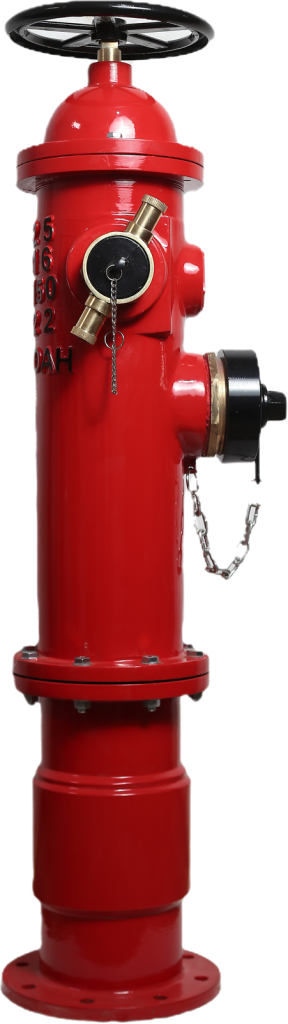

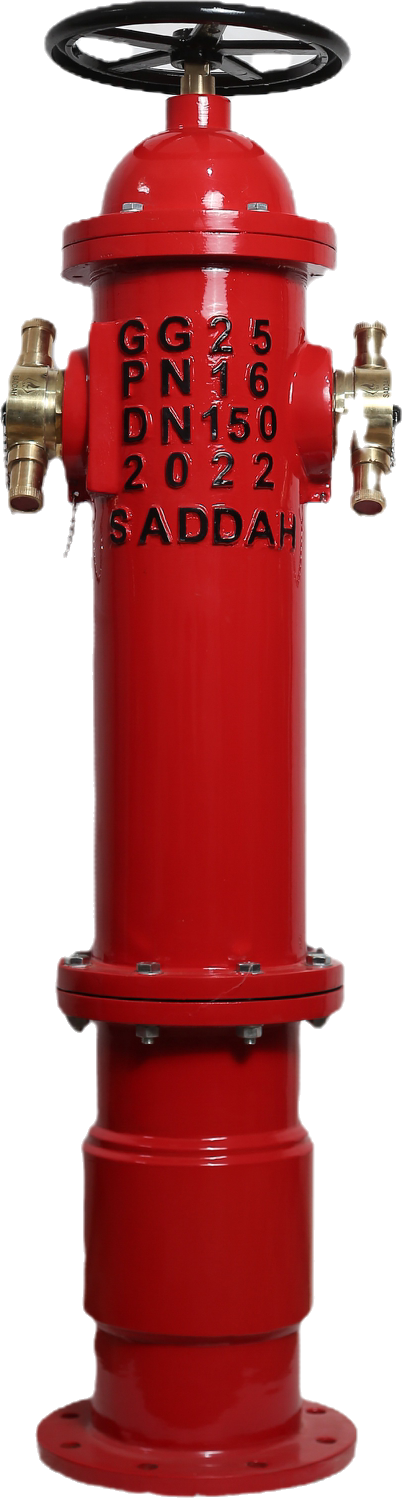

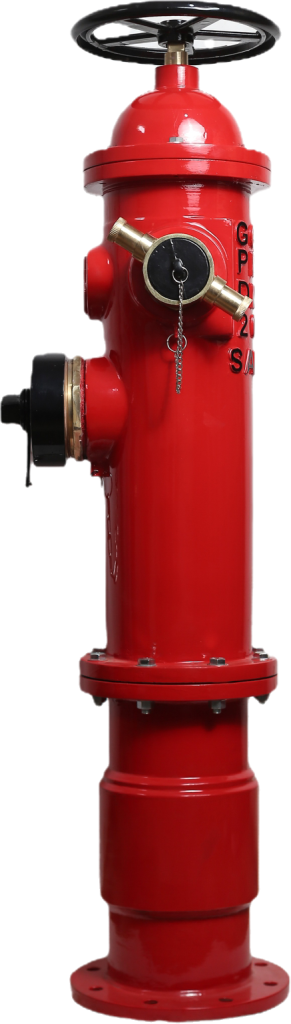

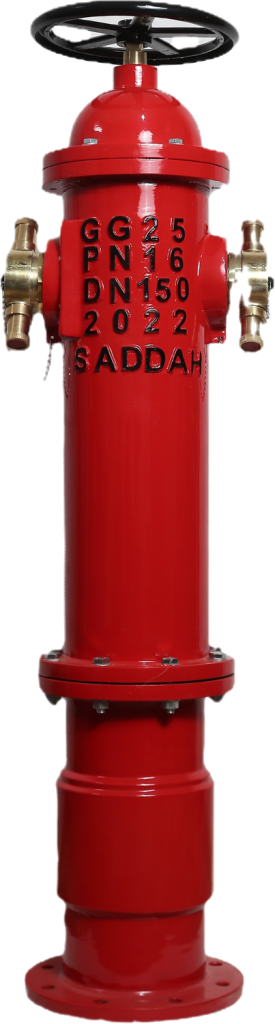

•Number of Outlets: 2 outlets on 180° with brass fire hose adapter and 1 pumper outlet.
•Inlet Size: 100 mm (4 Inches).
•Working pressure: 16 Bar
•Test Pressure: 24 Bar.
•KV For DN 2×65: < 140.
•KV For DN 1×100: <160.
• Minimum Operating Torque: <= 80 N.m.
•Minimum Strength Torque: >= 250N.m.
•Full Opening: 7 Turns
| ITEM NO. | PART NUMBER | QTY. | DESC. | Material |
|---|---|---|---|---|
| 1 | SFH40-P01 | 1 | Cap | Gray/Ductile Cast Iron |
| 2 | SFH40-P03 | 1 | Lower Body | Gray/Ductile Cast Iron |
| 3 | SFH40-P04 | 1 | Upper Body | Gray/Ductile Cast Iron |
| 4 | SFH40-P05 | 1 | Head Flange | Gray/Ductile Cast Iron |
| 5 | SFH40-P06 | 1 | Power Screw | Brass |
| 6 | SFH40-P07 | 1 | Power Screw Nut | Gray/Ductile Cast Iron |
| 7 | SFH40-P08 | 1 | Pillar | AISI 304 |
| 8 | SFH40-P09 | 1 | Gate Seal | EPDM/NBR |
| 9 | SFH40-P10 | 1 | Gate Body | Gray/Ductile Cast Iron |
| 10 | SFH40-P11 | 1 | O-Ring | EPDM/NBR |
| 11 | SFH40-P12 | 1 | Flanges Seal | EPDM/NBR |
| 12 | SFH40-P13 | 1 | Cap Seal | EPDM/NBR |
| 13 | DIN EN 24017-M12 x 60-N | 8 | Hex Bolt M12x60 | Galvanized Steel |
| 14 | Washer DIN 125-B 13 | 16 | Plain Washer 13 | Galvanized Steel |
| 15 | Hexagon Nut ISO 4034-M12-N | 8 | Hex Nut M12 | Galvanized Steel |
| 16 | DIN EN 24017-M10 x 25-N | 1 | Hex Bolt M10x25 | Galvanized Steel |
| 17 | Washer DIN 125-B 10.5 | 1 | Plain Washer 10.5 | Galvanized Steel |
| 18 | DIN 913-M6 x 6-C | 1 | Hex Bolt M6x6 | Galvanized Steel |
