Description:

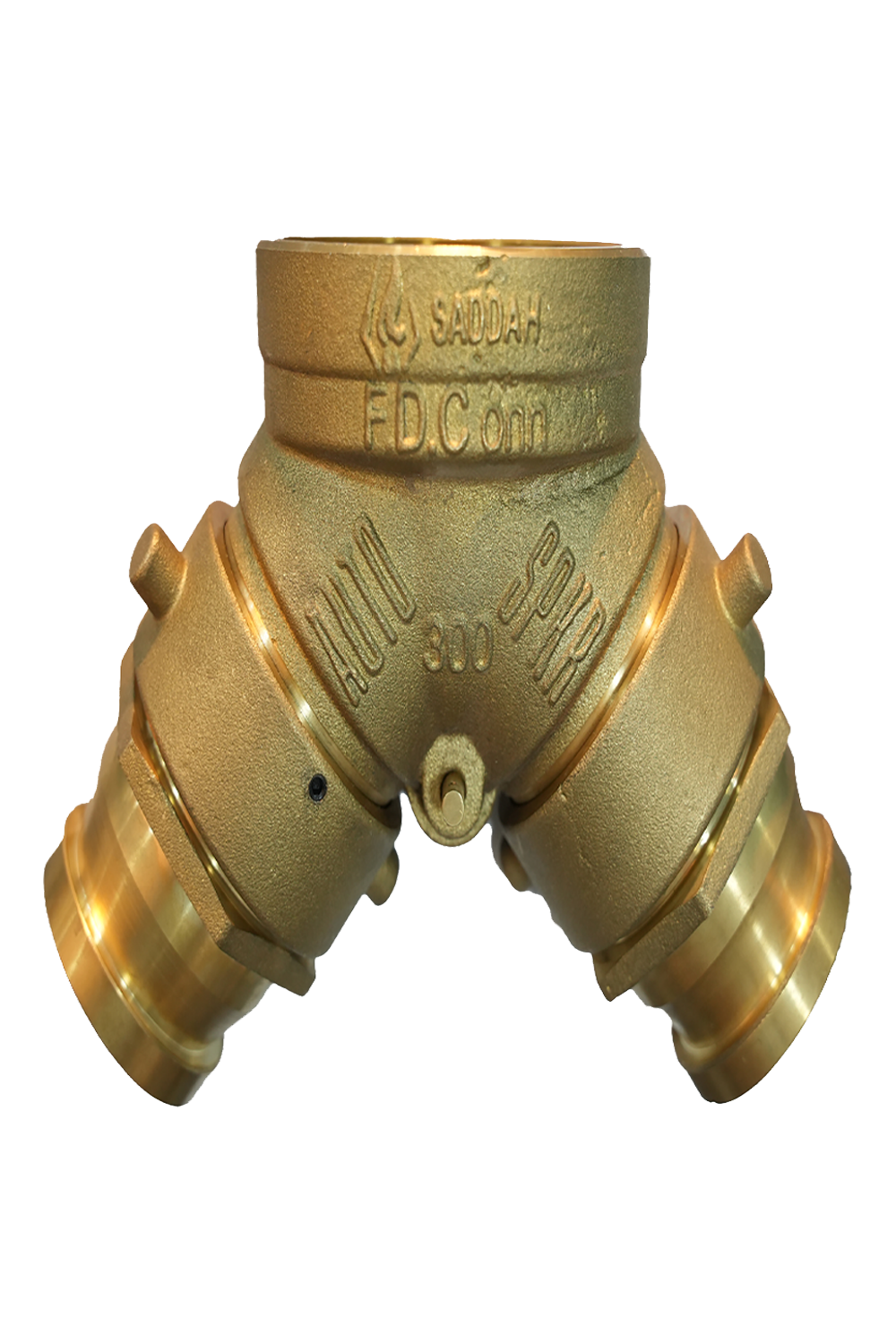

The Two-Way Siamese Connection is used as an auxiliary inlet connection to supplement the fire protection water supply, providing a minimum of 500 GPM.

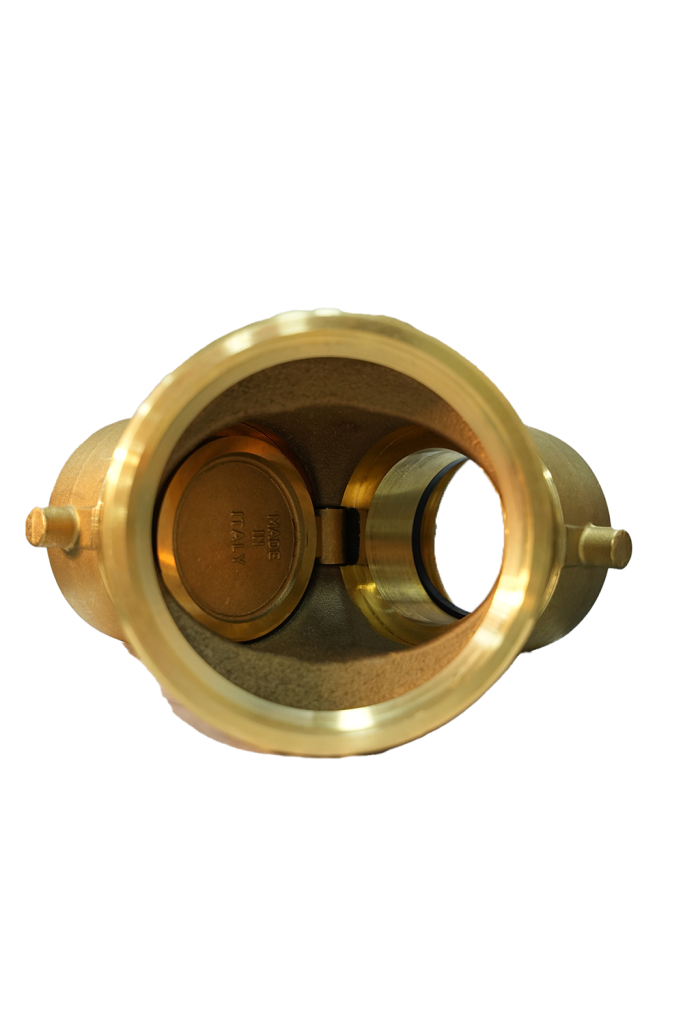

It is equipped with a swing clapper, ensuring a full waterway, and features an exposed design that offers an economical method of meeting Fire Department inlet requirements.

These connections are most commonly installed on the side of buildings (Model A95), but may also be located remote from the building (Model A96). In such cases, they are referred to as “freestanding” or “sidewalk” Fire Department Connections.

According to NFPA 13, the Fire Department Connection (FDC) must be located on the street side of buildings. However, in certain situations—such as large shopping malls—this is impractical, and therefore remote solutions like Model A96 are adopted.

Technical Data

• Rated pressure: 300 PSI (20,6 bar).

Materials: A95 and A96
• Body: casted brass CuZn37Pb2Ni1AlFe-B in accordance with European Standard UNI EN1982-2000 CB753S, corresponding to American Standard ASTM B30 C85700

• Tensile strength of the material in the shape of bar: min. 300 MPa
• Stress for permanent distortion R(0.2): min. 150 MPa
• Elongation: min. 15 %

• Clapper and swivels: forged brass CuZn40Pb2 in accordance with European Standard EN 12165 CW617N, similar to American Standard ASTM B124 C37700

• Yield stress of the material in the shape of bar: 360 MPa
• Stress for permanent distortion R(0.2): 138 MPa
• Elongation: 10 %
